Send Inquirycounter weight limit switch
Price 1550.00 INR/ Unit
MOQ : 1 Unit
counter weight limit switch Specification
- Protection Level
- IP-55
- Number of Module
- Multiple as per requirement
- Response Time
- Instantaneous
- Circuit Type
- Double Break
- Automation Grade
- Manual
- Rated Voltage
- 415V AC
- Finish Type
- Powder Coated
- Mechanical Life
- Up to 1 million operations
- Max. Current
- 40A
- Temperature Range
- -10C to +60C
- Product Type
- Counter Weight Limit Switch
- Material
- Metal
- Insulation Resistance
- Above 100 Mega Ohms at 500V DC
- Contact Resistance
- Less than 50 m
- Max. Voltage
- 500 Volt (V)
- Operating Temperature
- -10C to +60C
- Stoke
- 10 to 90
- Size
- Standard (Refer Drawing or Inquiry)
- Color
- ORANGE
- Weight
- 450 Grams (g)
- Mounting Type
- Surface Mount
- Current Rating
- Up to 40 Amps
- No Of Poles
- 2, 4, 6, or 8 as per selection
- Cable Entry
- 2 x 3/4" ET Cable Entry
- Switch Configuration
- 1NC + 1NO / 2NC + 2NO (as per order)
- Contact Material
- Silver Cadmium Oxide
- Vibration Resistance
- Capable of withstanding up to 10g
- Compliance
- Suitable for heavy-duty EOT cranes, hoists, winches
- Actuation Force
- Adjustable as required
- Standards Followed
- IS/IEC 60947-5-1
- Terminal Connection
- Screw type
- Operation Type
- Rotary lever, counterweight operated
- Shock Resistance
- Capable of withstanding up to 30g
- Ambient Humidity
- Up to 90% non-condensing
counter weight limit switch Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- Ahmedabad
- Supply Ability
- 350 Units Per Week
- Delivery Time
- 1 Days
- Sample Available
- Yes
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- STANDARD
- Main Export Market(s)
- Asia
- Main Domestic Market
- All India
- Certifications
- MSME
About counter weight limit switch
Get optimum performance from our hot-selling counter weight limit switch-a kingly solution for your heavy-duty EOT cranes, hoists, and winches. Fabricated from strong metal with a striking orange powder-coated finish, this uncommon device features rotary lever, counterweight operation, double-break circuit, and multiple poles and modules for custom requirements. Select from 1NC+1NO or 2NC+2NO switch configurations and enjoy high insulation, low contact resistance, and up to 1 million mechanical operations. Compliant with IS/IEC 60947-5-1 standards and built for reliability, it's the smart, safe choice for industrial automation in India.
Elite Features and Powerful Advantages
This counter weight limit switch boasts a rugged metal build and powder-coated finish, granting longevity and corrosion resistance. It delivers instant response with up to 1 million mechanical life cycles. The adjustable actuation force, surface mounting type, and customizable modules make it uniquely versatile. Enhanced with silver cadmium oxide contacts for optimum conductivity and a protection level of IP-55, this switch is tailored for kingly performance in the harshest industrial environments.
Efficient Delivery and Reliable Supply Network
Our counter weight limit switch is carefully packaged to ensure safe transit across India's main domestic markets. Upon receiving your quotation, our dedicated team handles prompt packing & dispatch, guaranteeing on-time delivery. We maintain significant supply capability for both standard and custom configurations, ensuring you get the right product when you need it. Our extensive network supports swift responses to orders, minimizing downtime and supporting your operational efficiency.
Elite Features and Powerful Advantages
This counter weight limit switch boasts a rugged metal build and powder-coated finish, granting longevity and corrosion resistance. It delivers instant response with up to 1 million mechanical life cycles. The adjustable actuation force, surface mounting type, and customizable modules make it uniquely versatile. Enhanced with silver cadmium oxide contacts for optimum conductivity and a protection level of IP-55, this switch is tailored for kingly performance in the harshest industrial environments.
Efficient Delivery and Reliable Supply Network
Our counter weight limit switch is carefully packaged to ensure safe transit across India's main domestic markets. Upon receiving your quotation, our dedicated team handles prompt packing & dispatch, guaranteeing on-time delivery. We maintain significant supply capability for both standard and custom configurations, ensuring you get the right product when you need it. Our extensive network supports swift responses to orders, minimizing downtime and supporting your operational efficiency.
FAQ's of counter weight limit switch:
Q: How does the counter weight limit switch operate?
A: The counter weight limit switch uses a rotary lever mechanism operated by a counterweight, enabling precise control and automatic actuation when the set limit is reached, ensuring operational safety for EOT cranes and similar equipment.Q: What benefits do adjustable actuation force and multiple pole options provide?
A: Adjustable actuation force allows users to set optimum sensitivity for their specific application. Multiple pole options (2, 4, 6, or 8) enable tailored control and flexibility to suit diverse operational requirements.Q: When should I select a 1NC+1NO versus a 2NC+2NO configuration?
A: Select the switch configuration-1NC+1NO or 2NC+2NO-based on your circuit's requirements for normally closed (NC) and normally open (NO) contacts. Complex or redundant safety systems may benefit from 2NC+2NO configurations for advanced control.Q: Where is this counter weight limit switch primarily used?
A: This product is widely applied in heavy-duty EOT cranes, hoists, and winches in industrial settings, particularly where reliability, durability, and precision are paramount.Q: What material ensures the durability of this switch?
A: The switch is constructed from high-strength metal, complemented by a powder-coated finish, enhancing its resilience against physical and environmental stresses.Q: How quick is the delivery process and how is the item packaged?
A: Once a quotation is finalized, the switch is promptly packed with protective packaging and dispatched swiftly, ensuring it arrives safely and on time within India's primary domestic markets.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Eot Crane Limit Switch Category
Rotary Geared Limit Switch
Price 2250.00 INR / Unit
Minimum Order Quantity : 100 Units
Rated Voltage : 500 Volt (V)
Material : Metal
Worm Drive Limit Switch
Price 1675 INR / Piece
Minimum Order Quantity : 1 Piece
Rated Voltage : 240 Volt (V)
Material : Alluminium Die Cast
Frequency : 50 Hertz (HZ)
Operating Temperature : 1050 Celsius (oC)

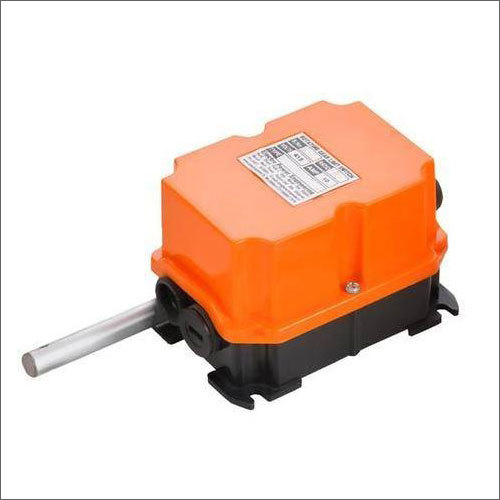

Rotary Gear Limit Switch
